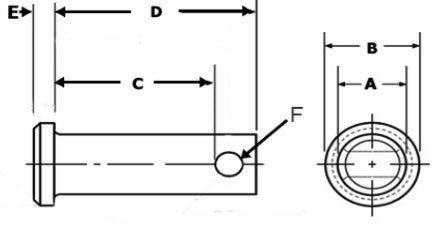

| Part Number | Pin Dia. Ø A mm | Drill Dia. Ø B mm | Usable C mm |
| LF00-01 | 15.87 | 8.10 | 139.70 |
| LF00-02 | 19.05 | 11.90 | 139.70 |
| LF100-03 | 22.22 | 11.90 | 139.70 |
| LF100-04 | 25.40 | 11.90 | 146.00 |
| LF100-05 | 28.57 | 11.90 | 146.00 |
| LF100-06 | 12.70 | 6.70 | 127.00 |
| LF100-07 | 15.87 | 8.10 | 127.00 |
| LF100-08 | 19.05 | 11.90 | 127.00 |
| LF100-09 | 22.22 | 11.90 | 127.00 |
| LF100-10 | 25.40 | 11.90 | 127.00 |
| LF100-11 | 28.57 | 11.90 | 127.00 |

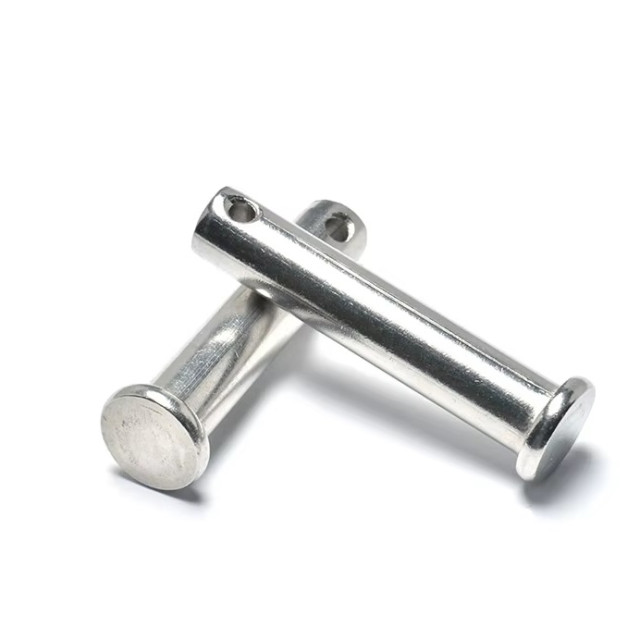

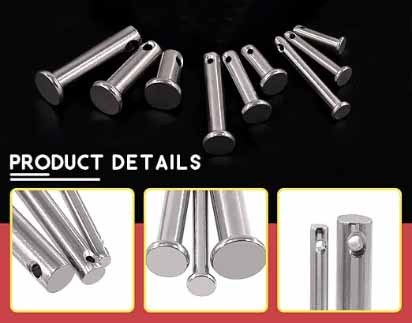

A Cylindrical Clevis Pin With R Clip made of stainless steel combines the core features of a clevis pin with the added benefits of stainless steel’s durability and corrosion resistance.
Here are the main features of Cylindrical Clevis Pin With R Clip.
Corrosion Resistance: Stainless steel offers excellent resistance to rust, corrosion, and staining, making it ideal for outdoor, marine, and high-moisture environments.
Strength and Durability: Stainless steel Cylindrical Clevis pins are strong, ensuring long-lasting performance even under high stress or load conditions. Aesthetic Quality: Stainless steel has a sleek, shiny appearance, making it suitable for applications where aesthetics matter.
Uniform Design: Cylindrical Clevis Pin With R Clip is typically a smooth, cylindrical pin designed to fit into clevis brackets or loops, creating a pivot point for parts to rotate or move. Ease of Insertion: The simple cylindrical design makes it easy to install and remove, as it fits into pre-drilled holes in components.
No Special Tools Required: The clevis pin is easy to install and remove manually or with basic tools (e.g., a hammer, pliers), making it ideal for maintenance and assembly tasks. Quick Disconnect: When used with retaining clips or cotter pins, the clevis pin can be easily removed or replaced, enabling quick disassembly of connected parts.
Variety of Sizes: Available in a wide range of sizes, including different diameters, lengths, and pin head designs (e.g., flat head or round head), allowing for use in various mechanical applications. Industry Standard: Clevis pins are manufactured to standardized specifications, ensuring compatibility with other components.
Minimal Wear and Tear: Due to stainless steel's strength and corrosion resistance, clevis pins require less frequent maintenance or replacement compared to those made from lower-grade materials. Long Service Life: Stainless steel clevis pins are durable and can last longer, especially in outdoor, harsh, or corrosive environments.

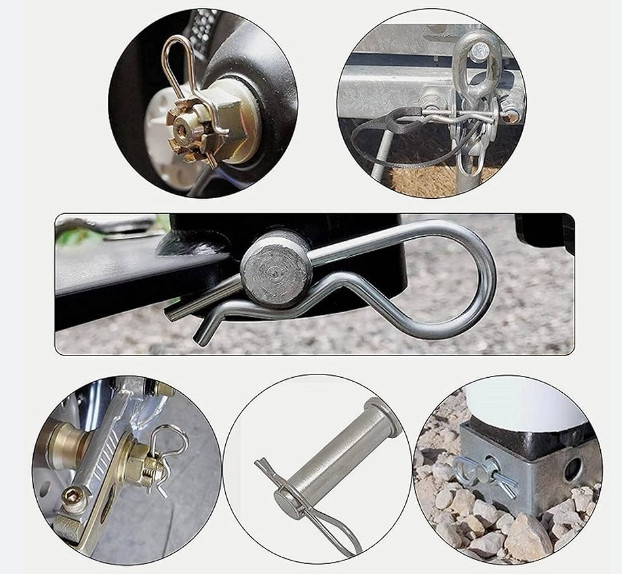

The Cylindrical Clevis Pin With R Clip is used across various industries where secure, durable, and corrosion-resistant fasteners are required. Its ability to provide pivoting or rotational movement while being easy to install and remove makes it highly versatile.
Below are the primary applications:
Suspension Systems: Clevis pins are used to connect components of suspension systems in vehicles (e.g., shock absorbers, control arms, or stabilizer bars), allowing for smooth movement and stability.
Steering Linkages: Used in steering systems for attaching linkages, rods, and joints that allow for rotation and pivoting.

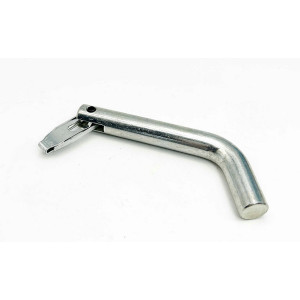

Towing and Trailer Connections: Clevis pins are used in hitch systems, trailer couplings, and towing brackets to secure the hitch ball or tow bar.

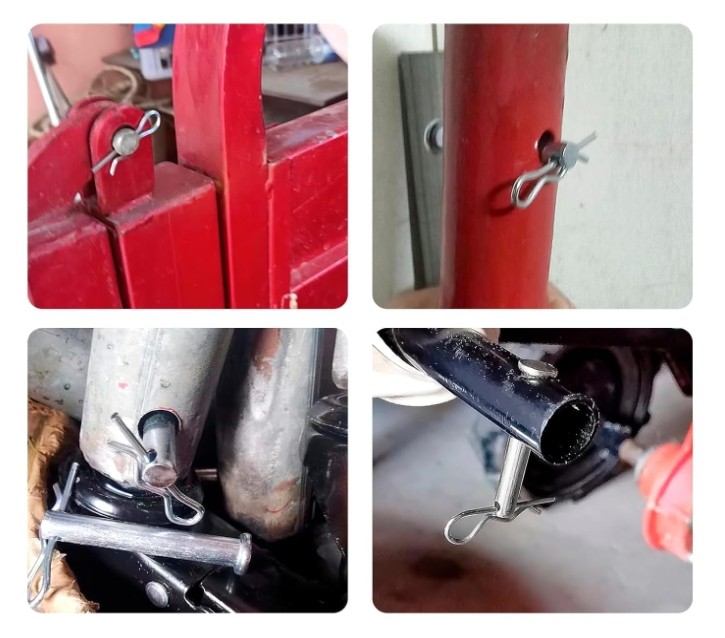

Tractors and Harvesters: In farming machinery, clevis pins are employed to fasten moving parts like implements, plows, or attachments, ensuring they can pivot while remaining secure.
Mower and Tiller Assemblies: Clevis pins are used to connect rotating or movable parts of lawn mowers, tillers, and other farm equipment, providing reliable attachment for components that experience heavy stress.
Cranes and Excavators: Clevis pins in stainless steel are used in cranes, excavators, and bulldozers to fasten hydraulic cylinders, booms, and other components that need to pivot.
Boat and Ship Components: Stainless steel clevis pins are ideal for marine applications because of their excellent resistance to corrosion in saltwater environments. They are used to fasten components such as rigging, steering linkages, and trailer hitches for boats.
Anchoring Systems: Used to attach parts of anchors, pulleys, and winch systems where high strength and resistance to corrosion are essential.
Corrosion Resistance: Stainless steel is ideal for use in harsh environments (marine, industrial, and outdoor) where exposure to moisture or chemicals is common.
Strength and Durability: Stainless steel clevis pins are strong and resistant to wear, making them suitable for heavy-duty and high-stress applications.
Ease of Use: They allow for quick assembly and disassembly, making maintenance or adjustments simple.
Longevity: Due to stainless steel’s resistance to corrosion, clevis pins provide a longer service life, reducing the need for frequent replacements.
Ready to upgrade your hitching system? Order your adjustable clevis pin now and enjoy fast shipping and excellent customer service. Our team is dedicated to providing you with the best in quality and reliability!
Button Handle Quick-Release Pins are ideal for applications that have limited space around the handle. The stainless steel construction and smart engineering of our Quick-Release Pins resist corrosion in harsh environments. Experience quick, easy positive engagement and high holding strengths for applications requiring frequent, repetitive use.
#Handle and Button are made of aluminum.
#Shake available in carbon steel and stainless steel.
#Customization is available.

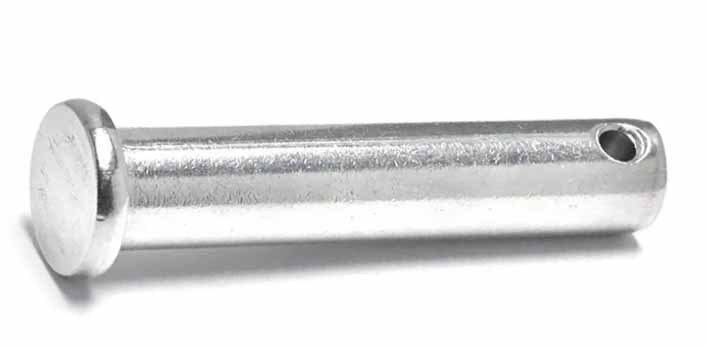

Flat Head Clevis Pin with Groove is a type of fastener commonly used in mechanical assemblies to connect two components, typically in applications requiring a secure, yet removable, joint. It features a flat, broad head that provides a larger surface area, ensuring stability and preventing the pin from slipping out. The groove in the pin allows for the insertion of a retaining clip, which locks the pin in place and helps prevent accidental dislodging.
Ring handle positive lock pins, commonly called push button pins or quick release pins, are self-locking quick release pins. They feature a button that engages an internal spring and plunger assembly to operate a detent ball seated at the opposite end of the pin.
#Handle and shank are stainless steel.
#Button is brass or stainless steel.
#Customization is available.
Linkgo Farm Wire Lock Pins Shaft Locking Pin available in round or square handle style, Single or double strand made of low carbon steel, zinc plated, Inch or Metric pin diameter, Available in stainless steel and customization. Wire lock pins are like having pin and cotter in one secure assembly!
● Round Shaft Locking Pin 1/4 x 2 Inch
● Round Shaft Locking Pin 5/16 x 1-3/4 Inch
● Round Shaft Locking Pin 3/8 x 2-1/4 Inch
