Unit：mm
|

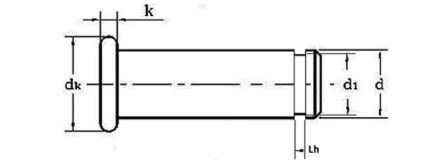

d rod diameter |
dk |
circlip d1 |
k | Lh | |
| min | max | ||||
| 3 | 5.41 | 5.55 | 2.5 | 1.3 | 0.8 |
| 4 | 6.6 | 6.9 | 3 | 1.5 | 0.9 |
| 5 | 8.53 | 8.62 | 4 | 1.8 | 0.9 |
| 6 | 10 | 10.2 | 5 | 2 | 1 |
| 8 | 12.2 | 12.4 | 7 | 2.5 | 1 |
| 10 | 14.4 | 14.6 | 8 | 3 | 1.1 |
| 12 | 17.7 | 17.8 | 10 | 3.3 | 1.1 |
What is Flat Head Clevis Pin with Groove?
The Flat Head Clevis Pin with Groove has several important features that make it effective in various mechanical applications.
Here are its main features:
Grooved clevis pins come in various diameters, lengths, and groove positions, allowing them to be used in a wide range of applications from heavy machinery to lighter construction and agricultural equipment.
Clevis pins are typically made from steel, stainless steel, alloy steel, or other durable materials, depending on the application’s load and environmental requirements.

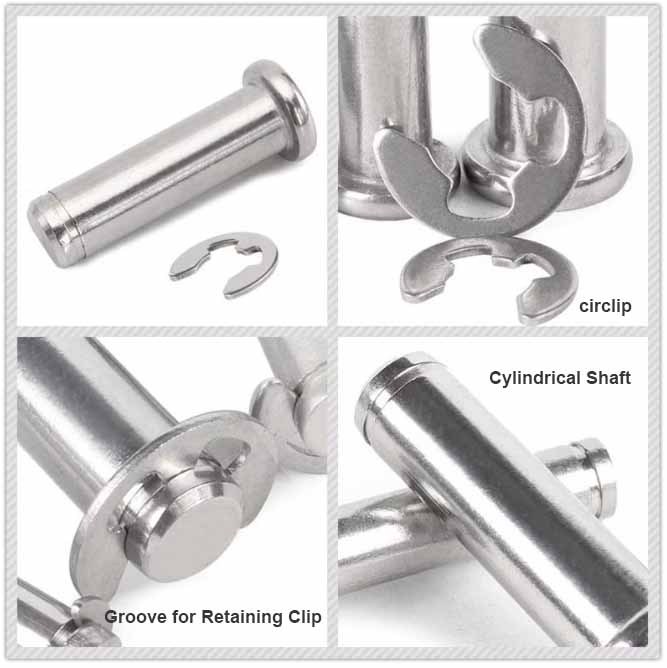

The most prominent feature is the groove along the shaft of the pin. This groove allows for the attachment of a retaining clip or cotter pin, which secures the pin in place, preventing it from sliding out.
The pin design allows for quick installation and removal, especially when using clips or cotter pins. It’s commonly used in situations where frequent disassembly or maintenance is required.
The main body of the pin is cylindrical and is designed to fit into corresponding holes in parts that need to be joined or pivoted.
A Groove Clevis Pin is a type of fastener used in mechanical and structural applications，It is typically designed with a groove or a slot near the head of the pin, allowing it to be secured in place with a retaining clip, such as a cotter pin or snap ring.
The groove clevis pin is often used in applications where a reliable, easily removable fastener is required.
Suspension Systems: Groove clevis pins are used in automotive suspension components, like linkages between control arms and suspension struts. They help secure the assembly and allow for quick maintenance or replacement.
Excavators, Loaders, and Cranes: In construction machinery, groove clevis pins help secure parts of mechanical linkages, arms, and hoist mechanisms. Their ease of removal makes them valuable for routine maintenance or when parts need to be swapped out quickly.
Tractors and Harvesters: Groove clevis pins are commonly used in agricultural equipment to connect various components like hitches, linkages, and hydraulic systems. The pins allow for easy assembly and disassembly for maintenance or replacement of parts.
Aircraft Control Systems: Groove clevis pins are often used in the assembly of flight control linkages or landing gear mechanisms in aircraft, where quick removal and secure fastening are necessary.
Conveyor Systems and Machinery: Groove clevis pins are employed in industrial machinery, where components like rollers, shafts, or conveyor belts need to be securely attached but also easily maintained or replaced.
Quick Assembly/Disassembly: The groove allows for a retaining clip or ring to be easily installed and removed, which is ideal for applications requiring frequent disassembly.
Secure Fastening: The groove ensures that the clevis pin remains securely in place during use.
Versatility: Groove clevis pins can be used in a variety of applications, especially where a reliable connection is needed but where part replacement or maintenance is expected.
Corrosion Resistance: They are often made from materials like stainless steel, making them resistant to rust and corrosion in harsh environments, such as marine or outdoor applications.
Ready to upgrade your hitching system? Order your forged hitch pins now and enjoy fast shipping and excellent customer service. Our team is dedicated to providing you with the best in quality and reliability!
Linkgo Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, a clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. Similar to bolts and rivets, clevis pins are used as quick, secure, and cost-effective fasteners. Available in plain, zinc clear, zinc yellow, and stainless steel. Universal Clevis Pin, Cylinder pin, Adjustable Clevis pin can be reused in a variety of applications in agricultural and other industrial applications.
Linkgo Farm Wire Lock Pins Shaft Locking Pin available in round or square handle style, Single or double strand made of low carbon steel, zinc plated, Inch or Metric pin diameter, Available in stainless steel and customization. Wire lock pins are like having pin and cotter in one secure assembly!
● Round Shaft Locking Pin 1/4 x 2 Inch
● Round Shaft Locking Pin 5/16 x 1-3/4 Inch
● Round Shaft Locking Pin 3/8 x 2-1/4 Inch
Linkgo Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, a clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. Similar to bolts and rivets, clevis pins are used as quick, secure, and cost-effective fasteners. Available in plain, zinc clear, zinc yellow, and stainless steel. Universal Clevis Pin, Cylinder pin, Adjustable Clevis pin can be reused in a variety of applications in agricultural and other industrial applications.
Linkgo Adjustable Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, the adjustable clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. Similar to bolts and rivets, clevis pins are used as quick, secure, and cost-effective fasteners. Available in plain, zinc clear, zinc yellow, and stainless steel. Universal Clevis Pin, Cylinder pin, Adjustable Clevis pin can be reused in a variety of applications in agricultural and other industrial applications.
