Size (in)
|
WLL (t)
|
Dimensions(in) |
Weight (lbs) |
|||||||||||
| A | B | C | D | E | F | G | H | L | M | P |
G-209 S-209 |
G-213 S-213 |
||
| 3/16 | 1/3 | 0.38 | 0.25 | 0.88 | 0.19 | 0.6 | 0.56 | 0.98 | 1.47 | 0.16 | 1.14 | 0.19 | 0.05 | - |
| 1/4 | 1/2 | 0.47 | 0.31 | 1.13 | 0.25 | 0.78 | 0.61 | 1.28 | 1.84 | 0.19 | 1.43 | 0.25 | 0.12 | 0.13 |
| 5/16 | 3/4 | 0.53 | 0.38 | 1.22 | 0.31 | 0.84 | 0.75 | 1.47 | 2.09 | 0.22 | 1.71 | 0.31 | 0.19 | 0.17 |
| 3/8 | 1 | 0.66 | 0.44 | 1.44 | 0.38 | 1.03 | 0.91 | 1.78 | 2.49 | 0.25 | 2.02 | 0.38 | 0.31 | 0.25 |
| 7/16 | 1 1/2 | 0.75 | 0.5 | 1.69 | 0.44 | 1.16 | 1.06 | 2.03 | 2.91 | 0.31 | 2.37 | 0.44 | 0.38 | 0.38 |
| 1/2 | 2 | 0.81 | 0.63 | 1.88 | 0.5 | 1.31 | 1.19 | 2.31 | 3.28 | 0.38 | 2.69 | 0.5 | 0.63 | 0.7 |
| 5/8 | 3 1/4 | 1.06 | 0.75 | 2.38 | 0.63 | 1.69 | 1.5 | 2.94 | 4.19 | 0.44 | 3.34 | 0.69 | 1.38 | 1.5 |
| 3/4 | 4 3/4 | 1.25 | 0.88 | 2.81 | 0.75 | 2 | 1.81 | 3.5 | 4.97 | 0.5 | 3.97 | 0.81 | 2.25 | 2.32 |
| 7/8 | 6 1/2 | 1.44 | 1 | 3.31 | 0.88 | 2.28 | 2.09 | 4.03 | 5.83 | 0.5 | 4.5 | 0.97 | 3.38 | 3.4 |
| 1 | 8 1/2 | 1.69 | 1.13 | 3.75 | 1 | 2.69 | 2.38 | 4.69 | 6.56 | 0.56 | 5.13 | 1.06 | 5.32 | 5 |
| 1 1/8 | 9 1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | 0.63 | 5.71 | 1.25 | 6.81 | 6.97 |
| 1 1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3 | 5.75 | 8.25 | 0.69 | 6.25 | 1.38 | 9.5 | 9.75 |
| 1 3/8 | 13 1/2 | 2.25 | 1.5 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | 0.75 | 6.83 | 1.5 | 13.25 | 13.23 |
| 1 1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10 | 0.81 | 7.33 | 1.62 | 17.2 | 17.25 |
| 1 3/4 | 25 | 2.88 | 2 | 7 | 1.84 | 5 | 4.19 | 8.86 | 12.34 | 1 | 9.06 | 2.25 | 30.38 | 29.46 |
| 2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.35 | 2.4 | 45 | 45.75 |
| 2 1/2 | 55 | 4.13 | 2.75 | 10.5 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13 | 3.13 | 85.75 | - |

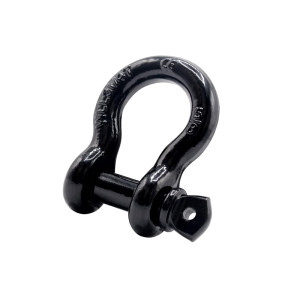

1/2" D Ring Shackle,with an Industry Standard 5/8" Screw Pin,This bow shackle is made of ultra strong drop forged steel and 26,455lbs maximum break strength,the towing capacity is up to 2 tons (4409 Lbs), high strength.
Here are main features of 1/2" D Ring Shackle.
The pin has a 1/2-inch diameter, which is the primary measurement of the shackle and determines its strength and compatibility with other rigging components.
The "D" shape provides a compact, strong design that is highly effective for handling heavy loads. This shape distributes stress evenly across the shackle.
Despite the relatively small size, 1/2" D Ring Shackles are designed to handle substantial weight, typically ranging from a few thousand pounds up to tens of thousands of pounds, depending on the specific shackle.
Typically made of high-strength steel (like carbon steel or alloy steel), often with coatings like galvanization or powder coating to resist corrosion, making them suitable for tough environments .
They are used in a wide range of applications, such as lifting, towing, rigging, and securing loads in industrial, construction, and recovery scenarios.
The pin is typically removable, allowing for easy connection and disconnection of ropes, chains, or other rigging components.
The 1/2" D Ring Shackle is used in a wide range of applications, especially where secure connections are required for lifting, towing, or rigging heavy loads.
Some common applications include:
Construction and Industrial Rigging: Used in rigging systems to connect slings, chains, or cables to lifting equipment . It is often part of a lifting assembly for moving heavy materials like steel beams or machinery.
Cargo Handling: In warehouses, shipping yards, or logistics, the shackle can be used to lift and move large containers, equipment, or pallets.
Vehicle Towing: The shackle is used in towing applications to securely attach a recovery strap, rope, or chain to a vehicle or object being towed. It's often employed in off-road vehicle recovery, such as in 4x4 off-roading or truck winching.
Heavy Equipment Recovery: In cases where large machinery or vehicles need to be pulled out of mud, snow, or other challenging environments, a 1/2" D-ring shackle can connect the recovery tools to the equipment.
Utility Work: Used in the construction or maintenance of utility lines for securing rigging equipment and tools.
Agricultural Equipment: Shackles may be used in farming for securing ropes or cables to agricultural equipment for lifting or towing.
Off-Roading: Commonly used in off-road vehicle recovery operations, such as attaching winch lines or tow ropes for vehicle extraction.
Outdoor Camping or Expeditions: Can be used for securing tents, hammocks, or other gear to anchor points in rugged outdoor environments.
SUPPLY MANY KINDS OF D-RING SHACKLE.
WELCOME TO CONSULT US OTHER TYPE, SIZE, MATERIAL AND PRICE.
The 2 1/2" x 1-3/8" Greenhouse Cross Connector are specialized hardware components used in the construction and maintenance of greenhouse frameworks. These clamps are designed to securely connect and stabilize pipes, forming essential cross-junctions within greenhouse structures.
#Hoop Size: 1-3/8”[1.315" O.D.], 1-5/8"[1.66" O.D.] 2”[1.90”O.D.], 2-1/2”[2.375”O.D.]
#Purlin Size: 1-3/8" [1.315"O.D.], 1-5/8”[1.66"O.D.]
#Material: Aluminum or Galvanized Steel
#Each set includes two Clamps with two Bolts and Nuts
A Stainless Steel Forged Bow Shackle is a heavy-duty connection device commonly used in lifting, rigging, towing, and securing applications. Made from high-quality stainless steel, it is specifically designed for strength, corrosion resistance, and reliability in challenging environments.
#D ring shackles are made of high-quality 304 stainless steel, smooth surface without burrs,durable, rustproof and designed for long-term use.
#The D-type bow shackle is easy to install, you just need to screw the shackle pin in/out to the pin hole for tightening/loosening.
3/4" d-ring shackles (57,000 Lbs),with an Industry Standard 7/8" Screw Pin. Designed to work specifically with tow strap hooks, ideal for most car accessories.
#Great for Jeeps, ATV, UTV, Trucks, Trailers, and sport-utility vehicles and for use with Our receiver hitch, winch snatch straps, snatch blocks, tree savers.
#Heavy duty D ring are powder coated for corrosion resistance,Comes with black isolator and washer, reduce rattling noise and protect your bumper finish from damage.
G-210 S-210 Screw Pin Anchor Ring Shackle,with an Industry Standard 5/8" Screw Pin,This bow shackle is made of ultra strong drop forged steel and 26,455lbs maximum break strength,the towing capacity is up to 2 tons (4409 Lbs), high strength.
#G-210 S-210 Screw Pin Anchor Shackle has double protected for prevention rust and corrosion by galvanize & powder coat plating
# G-210 S-210 Screw Pin Anchor ring shackles can work perfectly with most trucks, trailers, off-road jeeps, and SUV.
