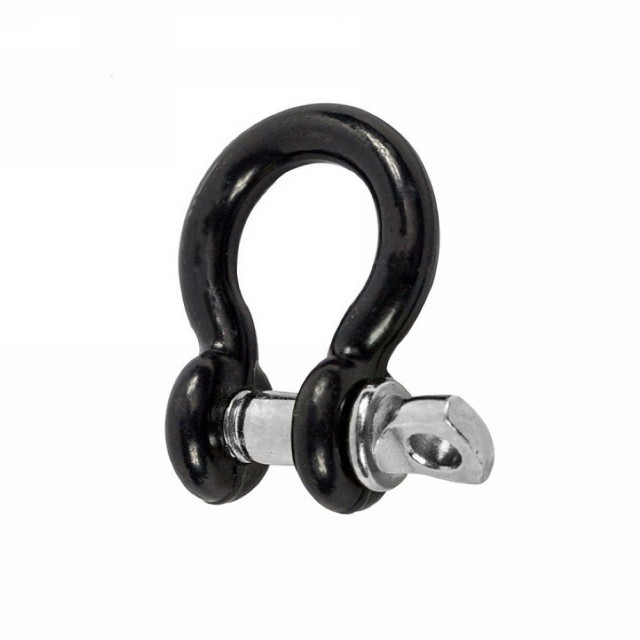

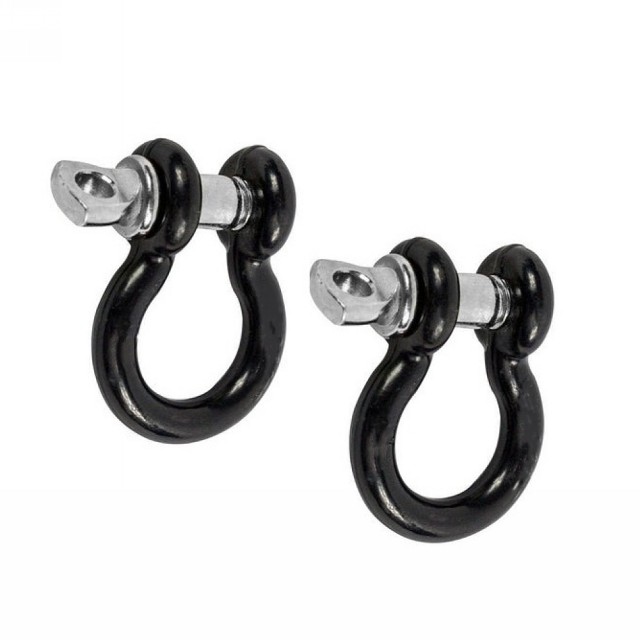

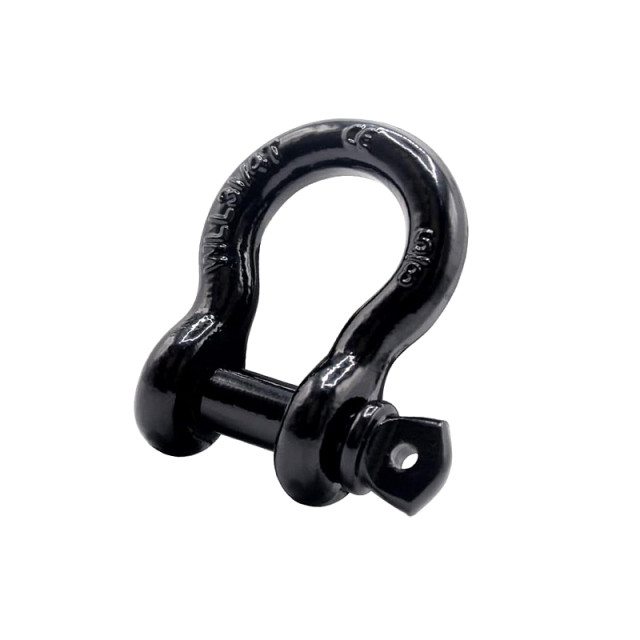

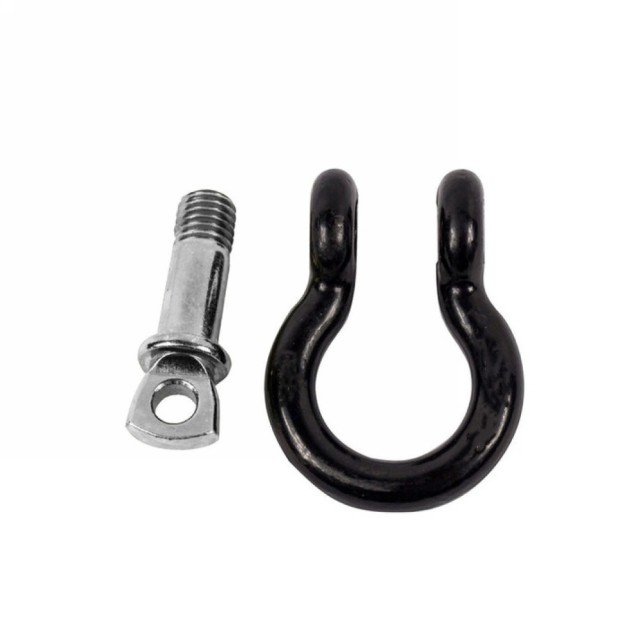

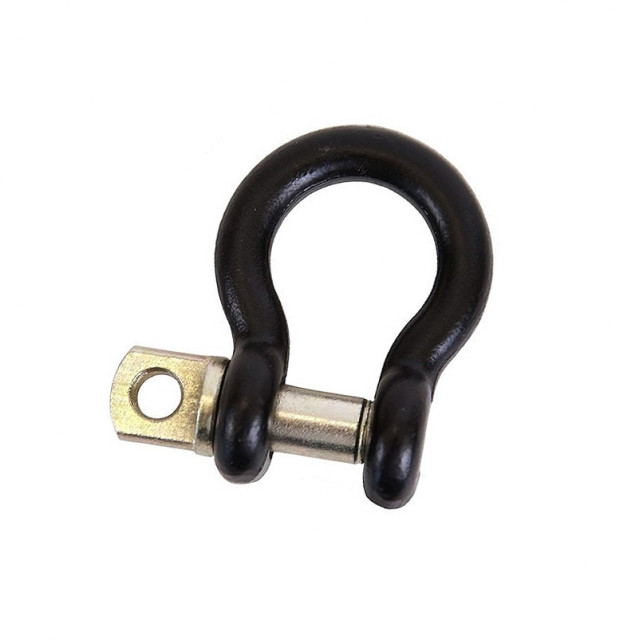

G-2150 S-2150 Bolt Type Farm Clevis Bow Shackle Tralier Safety Chain Anchor

Farm Clevis Bow Shackle Tralier Safety Chain Anchor Video

Description

Linkgo offer a wide range of Farm Tractor Clevis, which are widely known for its durability and quality. Provided clevises are manufactured and designed under the direction of our adroit professional as per the existing industrial standards at our production unit. Our offered product is tested by our quality controller on various quality parameters prior to dispatch. These Farm Tractor Clevis are available in various specifications as per our precious customer’s specifications at industrial leading rates. High efficiency, sturdiness and durability are features of offered product.

Specification of Farm Clevis Bow Shackle Tralier Safety Chain Anchor

Farm Clevis Bow Shackle Tralier Safety Chain Anchor Drawing

Size (in)	WLL (t)	Dimensions(in)											Weight (lbs)
Size (in)	WLL (t)	A	B	C	D	E	F	G	H	L	M	P	G-209 S-209	G-213 S-213
3/16	1/3	0.38	0.25	0.88	0.19	0.6	0.56	0.98	1.47	0.16	1.14	0.19	0.05	-
1/4	1/2	0.47	0.31	1.13	0.25	0.78	0.61	1.28	1.84	0.19	1.43	0.25	0.12	0.13
5/16	3/4	0.53	0.38	1.22	0.31	0.84	0.75	1.47	2.09	0.22	1.71	0.31	0.19	0.17
3/8	1	0.66	0.44	1.44	0.38	1.03	0.91	1.78	2.49	0.25	2.02	0.38	0.31	0.25
7/16	1 1/2	0.75	0.5	1.69	0.44	1.16	1.06	2.03	2.91	0.31	2.37	0.44	0.38	0.38
1/2	2	0.81	0.63	1.88	0.5	1.31	1.19	2.31	3.28	0.38	2.69	0.5	0.63	0.7
5/8	3 1/4	1.06	0.75	2.38	0.63	1.69	1.5	2.94	4.19	0.44	3.34	0.69	1.38	1.5
3/4	4 3/4	1.25	0.88	2.81	0.75	2	1.81	3.5	4.97	0.5	3.97	0.81	2.25	2.32
7/8	6 1/2	1.44	1	3.31	0.88	2.28	2.09	4.03	5.83	0.5	4.5	0.97	3.38	3.4
1	8 1/2	1.69	1.13	3.75	1	2.69	2.38	4.69	6.56	0.56	5.13	1.06	5.32	5
1 1/8	9 1/2	1.81	1.25	4.25	1.16	2.91	2.69	5.16	7.47	0.63	5.71	1.25	6.81	6.97
1 1/4	12	2.03	1.38	4.69	1.29	3.25	3	5.75	8.25	0.69	6.25	1.38	9.5	9.75
1 3/8	13 1/2	2.25	1.5	5.25	1.42	3.63	3.31	6.38	9.16	0.75	6.83	1.5	13.25	13.23
1 1/2	17	2.38	1.63	5.75	1.54	3.88	3.63	6.88	10	0.81	7.33	1.62	17.2	17.25
1 3/4	25	2.88	2	7	1.84	5	4.19	8.86	12.34	1	9.06	2.25	30.38	29.46
2	35	3.25	2.25	7.75	2.08	5.75	4.81	9.97	13.68	1.22	10.35	2.4	45	45.75
2 1/2	55	4.13	2.75	10.5	2.71	7.25	5.69	12.87	17.84	1.38	13	3.13	85.75	-

Application of Farm Clevis Bow Shackle Tralier Safety Chain Anchor

A Farm Clevis Bow Shackle is a versatile and heavy-duty fastening component widely used in agricultural, industrial, and towing applications. Its primary function is to securely connect two elements, typically for lifting, towing, or anchoring.

Here’s a breakdown of its various applications, particularly in farm settings.

1.Towing and Trailer Safety

Trailer Safety Chains: One of the most common uses for a farm clevis bow shackle is in the attachment of safety chains between the towing vehicle (e.g., tractor, pickup truck, or other farm vehicle) and the trailer. Safety chains prevent the trailer from completely detaching from the vehicle in case of a hitch failure, ensuring that the trailer remains under control.

2.Lifting and Rigging Equipment

Lifting Implements: Clevis bow shackles are often used in lifting applications on farms, especially when hoisting heavy equipment like engines, augers, or irrigation pumps. The clevis bow shackle can serve as an attachment point for lifting slings or cables connected to cranes or hoists.

3.Farm and Ranch Fencing

Fencing Applications: On farms and ranches, clevis bow shackles can be used to anchor and secure fence posts or gates, ensuring that fencing remains stable and functional. These shackles are particularly useful in high-tension applications, such as securing barbed wire or electric fence systems.

Buy Farm Clevis Bow Shackle Tralier Safety Chain Anchor From LINKGO FARM

Our factory uses advanced equipment to provide you with high-quality and satisfactory products. Welcome to consult us for size, quantity and price!
