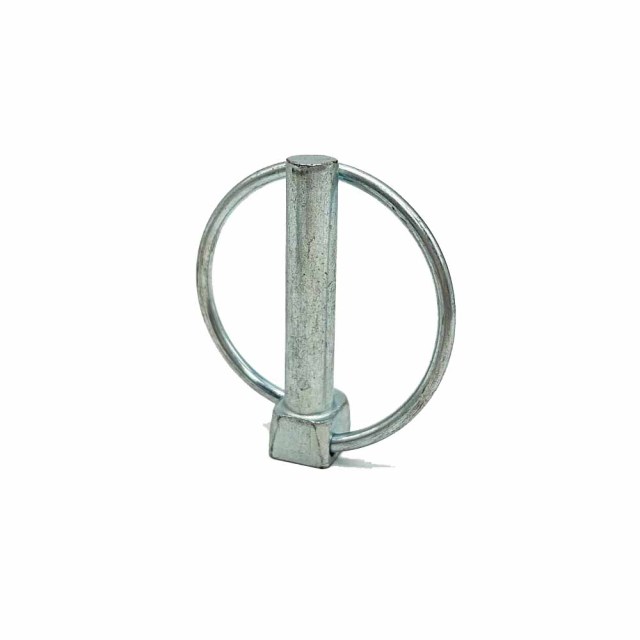

Tractor Linch Pin with Ring

Linch Pins are designed with a solid pin with an attached self-locking ring. This ring allows the pin to be securely held in place and provides an easy grip for quick removal. Made of low carbon steel, zinc plated. Available in stainless steel and customization.

Linch Pin Specification

             Lynch pin drawing

PART NO. Nominal Effective
Length
Shank
Length
WEIGHT
(D) (EL) (SL)
INCH MM INCH INCH KG/PCS
LP250-125 1/4 6 1-1/4 1-9/16 0.025
LP250-131 1-5/16 1-3/4 0.026
LP312-125 5/16 8 1-1/4 1-9/16 0.032
LP312-137 1-3/8 1-3/4 0.034
LP312-175 1-3/4 2 0.041
LP437-137 7/16 11 1-3/8 1-3/4 0.052
LP437-150 1-1/2 1-3/4 0.057
LP437-162 1-5/8 1-15/16 0.056
LP437-175 1-3/4 2-1/4 0.065

Lynch Pin Application

lynch pin, or linchpin, is a small but essential hardware component used to securely fasten wheels, gears, or other rotating parts to shafts or axles, preventing them from sliding off. It’s often a simple metal pin that passes through a hole at the end of a shaft and has a spring-loaded loop or collar that keeps it in place.



Lynch Pin Assortment Kit with Ring, Heavy Duty Round Pin Locks Trailer Gate Pin Trailer Coupler Pin

Here are some common applications of a linch pin:



1. Linch Pin For Agricultural Equipment:

Used in tractors and other farm machinery to secure implements like plows, cultivators, and trailers to the main equipment. It makes it easy to attach and detach different tools and accessories.



2. Linch Pin For Automotive and Trailers:

Commonly used to secure trailer hitches and attachments. In some cases, they’re also used to hold spare tires or other parts in place.



3. Linch Pin For Construction Machinery:

Found in heavy-duty equipment like excavators, bulldozers, and cranes, lynch pins prevent attachments from coming loose while in operation.



4. Linch Pin For Industrial Machinery:

Used in conveyor systems and other machinery where components need to be securely attached yet easily removable for maintenance or replacement.



5. Lynch Pin For Bicycles and Carts:

On bike trailers, for instance, a lynch pin is often used to connect the trailer to the bike quickly.



Lynch pins are ideal for applications where quick assembly and disassembly are necessary without tools. In your factory, lynch pins might also be used for securing parts of assembly lines or holding equipment in place that may need routine adjustments.

Lynch Pin Material

Lynch pins are commonly made from carbon steel, stainless steel, or zinc-plated steel to resist corrosion.



The material should be chosen based on the environment; stainless steel is more suitable for wet or corrosive conditions.

How to choosing the right Lynch Pin Sizes

Lynch Pin Sizes: Choosing the Right Fit



Lynch pins come in multiple sizes, each suited to specific applications. Selecting the right size is crucial for safety and efficiency. Here’s a guide to common sizes:



1. Diameter
Lynch pins range in diameter from 3 mm to 16 mm or 1/8 inch to 5/8 inch. The pin diameter should match the hole size on the shaft to prevent excessive movement and ensure stability.



2. Usable Length
The usable length of a lynch pin varies based on the equipment. Standard lengths range from 20 mm to 100 mm or 3/4 inch to 4 inches. For larger industrial equipment, a longer length provides additional stability.



3. Wire Diameter (Spring Clip)
This thickness typically ranges from 1.5 mm to 3 mm or 1/16 inch to 1/8 inch. Heavy-duty applications require thicker clips for added durability.



4 Overall Length
The overall length, including the handle or ring, can range from 30 mm to 120 mm or more. This length can affect ease of handling and compatibility in tight spaces.

Buy Lynch Pin From LINKGO FARM

Need reliable linch pins? Buy top-quality linch pins from LINKGO FARM for secure, durable, and affordable solutions for all your agricultural and industrial equipment needs.Don’t settle for less when it comes to your equipment. Visit our website or contact our team today to find the right linch pins for your needs!
