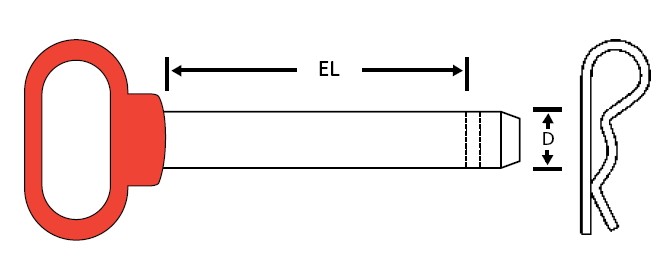

PART NO. | Nominal | Effective Length | Overall Length | WEIGHT | |
(D) | (EL) | (L) | |||
INCH | MM | INCH | INCH | KG/PCS | |
HPR050-3625 | 1/2 | 12 | 3-5/8 | 6-5/8 | 0.318 |
HPR625-400 | 5/8 | 16 | 4 | 7 | 0.409 |
HPR625-575 | 5-3/4 | 9 | 0.500 | ||
HPR750-400 | 3/4 | 20 | 4 | 7 | 0.500 |
HPR750-450 | 4-1/2 | 7-1/2 | 0.600 | ||
HPR750-650 | 6-1/2 | 9-1/2 | 0.682 | ||
HPR875-425 | 7/8 | 22 | 4-1/4 | 7-1/4 | 0.636 |
HPR875-650 | 6-1/2 | 9-1/2 | 0.864 | ||
HPR100-425 | 1 | 25 | 4-1/2 | 7-1/2 | 0.864 |
HPR100-475 | 4-3/4 | 7-3/4 | 0.909 | ||
HPR100-650 | 6-1/2 | 9-1/2 | 1.100 | ||
HPR100-750 | 7-1/2 | 10-1/2 | 1.182 | ||
HPR1125-700 | 1-1/8 | 28 | 7 | 10 | 1.455 |
HPR1125-850 | 28 | 8-1/2 | 11-1/2 | 16.82 | |
HPR1250-700 | 1-1/4 | 32 | 7 | 10 | 1.682 |
HPR1375-850 | 35 | 8-1/2 | 11-1/2 | 1.955 | |
HPR1500-850 | 1-1/2 | 38 | 8-1/2 | 11-1/2 | 3.090 |

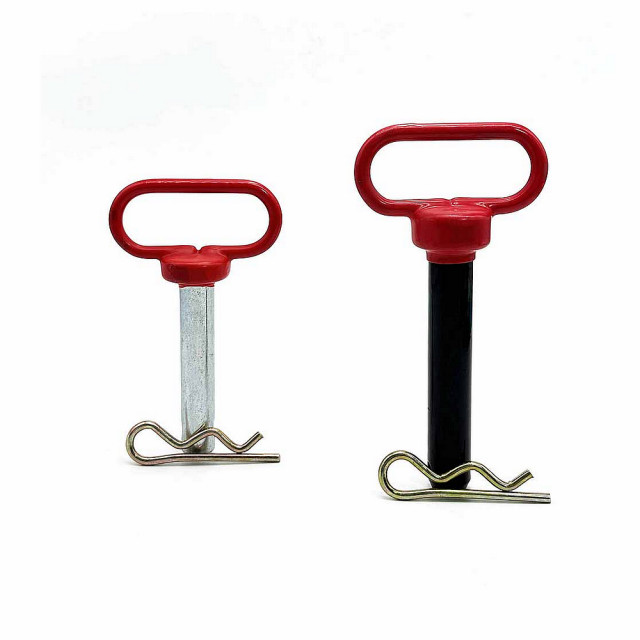

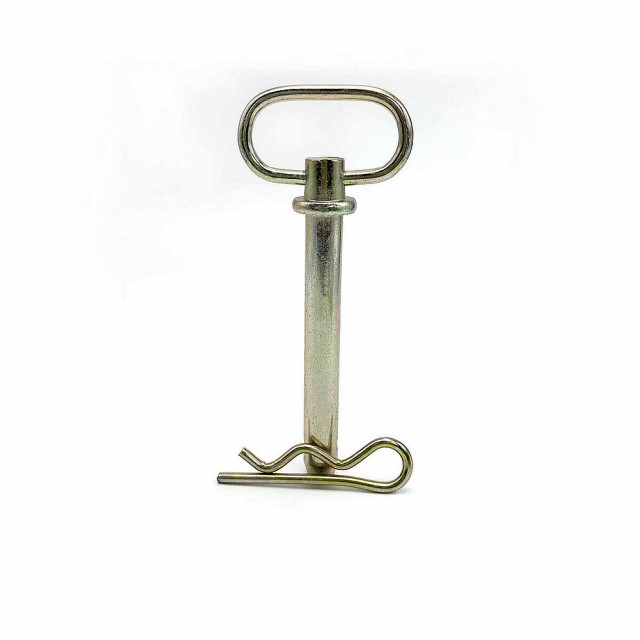

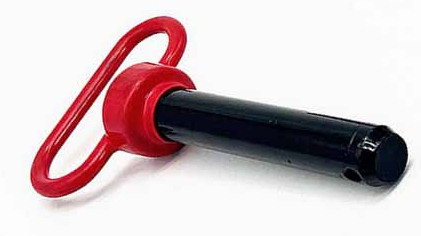

Red Head Hitch Pins are metal pin that fixe the trailer or other connecting devices, and are used to connect tools and machinery. zinc plated "R" clip pins are used to maintain a fixed connection between the trailer hook and the trailer by inserting it into the connection hole.
Red Head Hitch Pins are used for coupling implements and machinery. Forged hitch pins are made from high strength steel and heat treated. Hitch Pin have powder coating with a red viny coated head and handle,zinc plated "R" Clip pin included.

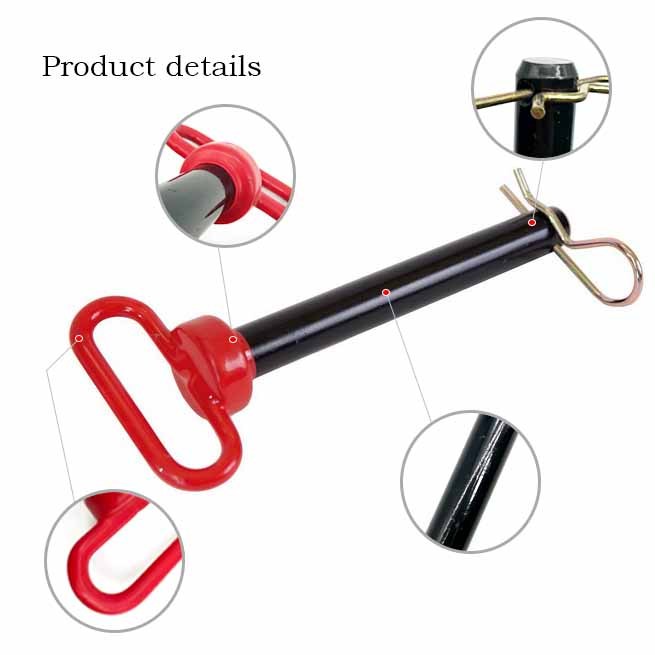

Red Head Hitch Pins are designed for secure and efficient attachment of towing equipment and machinery. Its main features typically include the following:
Versatility: Compatible with a wide range of towing systems and agricultural machinery.
Visibility: High-visibility red cap for easy identification.
Durability: Forged hitch pins are made from high strength steel and heat treated All materials are high strength and corrosion resistant
Security: Includes locking mechanisms like cotter pins or clips to prevent accidental disconnection.
Ease of Use: Simple insertion and removal for quick attachment and detachment.
These features make Red Head Hitch Pin a practical, durable, and safe choice for securing equipment and trailers in various industries, particularly in agriculture and construction.
The Red Head Hitch Pins are widely used in various agricultural, industrial, and recreational equipment applications. Its design, often featuring a visible red-colored cap, provides both practical and safety benefits.
Here are some common application scenarios for the Red Head Hitch Pin:
In agricultural machinery, Red Head Hitch Pins are vital for attaching and securing implements to tractors or other vehicles. The red cap serves both a functional and safety purpose, ensuring the pin is easy to see, secure, and use efficiently during farming operations. They help prevent accidents, make connection and disconnection easier, and are built to withstand the rigors of farm work
Heavy Machinery Attachments: In construction, Red Head Hitch Pins are used to connect attachments like buckets, excavators, or augers to machines like backhoes or skid-steer loaders.
Towable Equipment: Red Head Hitch Pins can secure various towable equipment (like portable generators, concrete mixers, or construction trailers) to tow trucks or machines.
Towing Trailers: Red Head Hitch Pins are used to secure towing connections on RVs or travel trailers. The pin ensures that the trailer remains attached to the vehicle when moving.
Boat Trailers: Used in boating, the hitch pin is essential for connecting boat trailers to vehicles for transportation.
Marine Towing Systems: In certain marine setups, hitch pins are used to secure tow ropes or towing mechanisms for moving boats.
Ground Support Equipment: For towing ground support equipment (like baggage carts or aircraft tow bars) in airports, Red Head Hitch Pins ensure that the vehicles or equipment stay securely attached to towing vehicles.
Benefits of Red Head Hitch Pins in these Applications:
High Visibility: The red cap makes the pin easy to locate, reducing the risk of leaving it improperly secured or lost.
Quick Connection: Provides a fast and simple way to connect or disconnect attachments or trailers, improving efficiency in various tasks.
Safety: The hitch pin ensures that connections are secure, preventing accidents or detachment of heavy equipment during operation.
Durability: The pins are designed to handle the heavy forces involved in towing and attaching large, heavy equipment, making them suitable for tough conditions.
Tractor Hitch Top Link Accessories are a Class 3 replacement made from mild steel with a white zinc plate coating, making them durable and an essential tool for performing a variety of farm tasks.
#Category : 3, Adjust Length : 25 1/2", Body Length : 19 ", Overall Length : 36 1/2"
#Material : mild steel
#Finish Type : Powder Coated
Lynch Pins are designed with a solid pin with an attached self-locking ring. This ring allows the pin to be securely held in place and provides an easy grip for quick removal. Made of low carbon steel, zinc plated. Available in stainless steel and customization.
Made from carbon steel with a zinc finish that resists corrosion, this clevis hitch pin roll pin offers a low-cost option for replacing worn or broken pins on farm implements.
#material:mild steel
#Yellow Zinc Plated or Bright Zinc Plated
Linkgo Farm Round double wire lock pin with clip. Made from carbon steel with a zinc finish for durability and brilliance, Single or double strand made of low carbon steel, zinc plated, Inch or Metric pin diameter, Available in stainless steel and customization. Wire lock pins are like having pin and cotter in one secure assembly!
● Round Shaft Locking Pin 1/4 x 2 Inch
● Round Shaft Locking Pin 5/16 x 1-3/4 Inch
● Round Shaft Locking Pin 3/8 x 2-1/4 Inch
