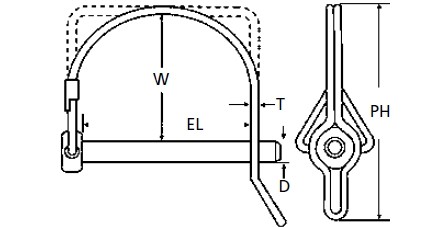

| Nominal (D) DIAMETER | Effective Length (EL) LENGTH |
Wire Diameter (T) | Wire Clearance (W) | Total Pin Height (PH) | Handle Style | WEIGHT Lbs. per100 Pieces |
| 1/4 | 1-3/4 | .091 | 1.500 | 2.750 | Round | 7.20 |
| 1/4 | 2-1/2 | Square | 9.00 | |||
| 5/16 | 1-3/4 | Round | 8.80 | |||
| 5/16 | 2-1/2 | Square | 10.80 | |||
| 3/8 | 1-3/4 | Round | 11.50 | |||
| 3/8 | 2-1/2 | Square | 13.80 |
The round shaft design allows for smooth insertion and removal, making it suitable for repetitive use.
Equipped with a spring-loaded ball detent or push-button lock, which secures the pin in place to prevent accidental release. This design ensures a tight, rattle-free fit that withstands vibration and movement.

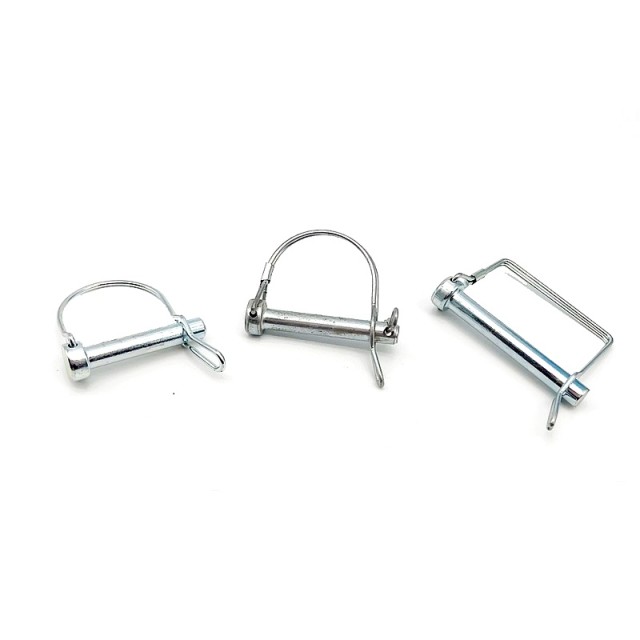

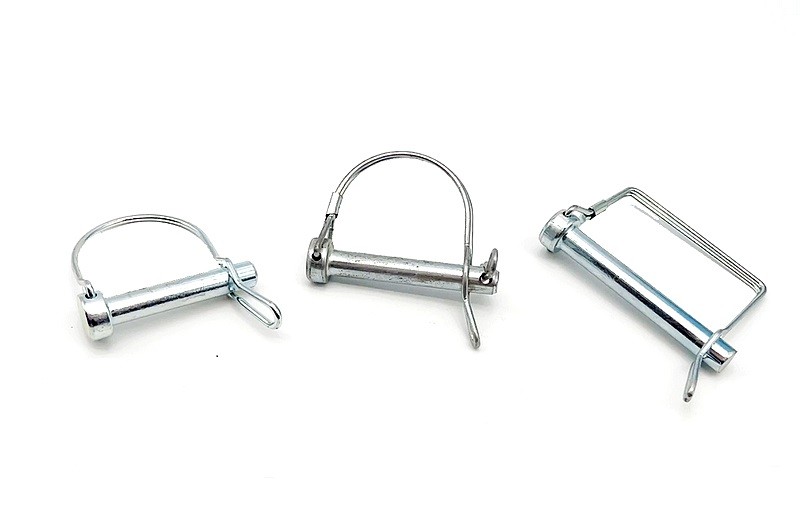

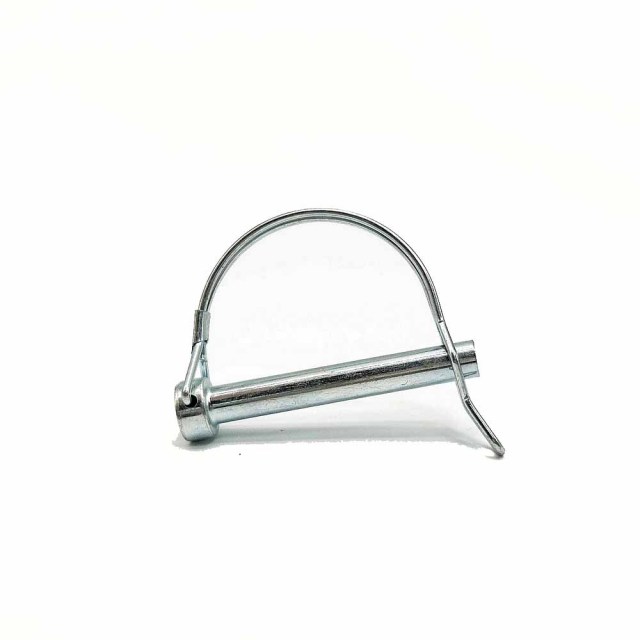

3. Tap Lock Pin Round / Square Easy Operation:
The pin can be locked or released by a simple push or pull, making it ideal for situations where quick adjustments or frequent changes are needed.
1. Quick Assembly: Allows for easy and fast assembly or disassembly of components.
2. Tool-Free Operation: Can be locked or released manually, perfect for areas requiring frequent adjustments.
3. Vibration Resistance: Designed to hold components securely, even in high-vibration environments.
4. Versatility: Applicable in numerous industries due to material variety and customizability.
Linkgo Farm offer Round / Square Tap Lock Pin customization services to meet specific requirements. Custom options may include:
1. Round / Square Tap Lock Pin Size Adjustments:
Custom lengths, diameters, or widths for specific fitting requirements.
2. Round / Square Tap Lock Pin Special Locking Mechanisms:
Options for unique detent systems or reinforced locking mechanisms.
3. Round / Square Tap Lock Pin Branding and Identification:
Custom logos or marks for inventory management and brand visibility.
4. Round / Square Tap Lock Pin Unique Finishes:
Specialized coatings for unique environments, including marine or high-temperature settings.
One - piece split shaft collars are important fasteners. Made usually of Carbon Steel and Stainless Steel. They have a one - piece design with a split for easy shaft installation. Provide secure grip, are durable, and are used in many mechanical applications.
#Material: Carbon Steel, Stainless Steel(SS), Aluminum(AL)
#Surface Treatment: Black Oxide, Zinc Plated, Slef Colour Oiled
#Custom size avaiable
Flat Head Clevis Pin with Groove is a type of fastener commonly used in mechanical assemblies to connect two components, typically in applications requiring a secure, yet removable, joint. It features a flat, broad head that provides a larger surface area, ensuring stability and preventing the pin from slipping out. The groove in the pin allows for the insertion of a retaining clip, which locks the pin in place and helps prevent accidental dislodging.
Lynch Pins are designed with a solid pin with an attached self-locking ring. This ring allows the pin to be securely held in place and provides an easy grip for quick removal. Made of low carbon steel, zinc plated. Available in stainless steel and customization.
The two-piece clamp screw collar is a precision component. Made from carbon steel or stainless steel, the collar is used to accurately locate and secure shafts, providing reliable performance in a variety of mechanical applications.
#Material: Carbon Steel, Stainless Steel(SS), Aluminum(AL)
#Surface Treatment: Black Oxide, Zinc Plated, Slef Colour Oiled
#Custom size avaiable
