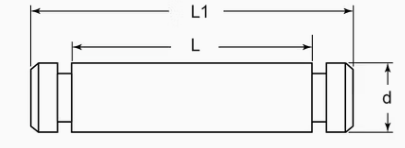

Part Number |
d |
L | L1 |
| P52-01 | 3/16" | 3/4" | 1 1/8" |
| 1" | 1 3/8" | ||
| 1 1/4" | 1 5/8" | ||
| 1 1/2" | 1 7/8" | ||
| P52-02 | 1/4" | 1/2" | 7/8" |
| 3/4" | 1 1/8" | ||
| 1" | 1 3/8" | ||
| 1 1/4" | 1 5/8" | ||
| 1 1/2" | 1 7/8” | ||
| 2" | 2 3/8” | ||
| P52-03 | 5/16" | 3/4" | 1 1/8" |
| 1" | 1 3/8" | ||
| 1 1/4" | 1 5/8" | ||
| 1 1/2" | 1 7/8" | ||
| P52-04 | 1/2" | 1" | 1 1/2" |
| 1 1/4" | 1 3/4" | ||
| 1 1/2" | 2" | ||
| 1 3/4" | 2 1/4" | ||
| 2" | 2 1/4" |
In industries like construction, agriculture, and mining, double grooved clevis pins with circlips are used in situations where higher retention is necessary, such as in heavy-duty linkages, pivot points, and hydraulic systems.
These pins are used in suspension systems, brake linkages, and steering mechanisms, where the safety and reliability of the fastening are critical.
In farming equipment, like tractors and plows, double grooved clevis pins with circlips are used to hold parts of the implement together, ensuring durability in harsh working conditions.
These pins are used in aircraft systems, such as flight control linkages or landing gear, where secure fastening and ease of maintenance are essential.
In marine equipment, like rudder linkages or lifting gear, double grooved clevis pins with circlips provide corrosion resistance and secure fastening in rugged and saltwater environments.
Enhanced Retention: The use of two grooves and circlips provides a higher level of security than a single groove pin. The two circlips ensure that the pin stays firmly in place, even in high-vibration or high-load environments.
Quick Assembly and Disassembly: Like standard clevis pins, they are easy to install and remove, making them ideal for applications that require frequent maintenance or part replacement.
Prevention of Pin Dislodgement: The double groove and circlip setup minimize the chances of the pin coming loose accidentally, which is especially important in high-stress or safety-critical applications.
Corrosion Resistance: When made from corrosion-resistant materials like stainless steel, these pins are well-suited for use in harsh environments like marine or industrial settings.

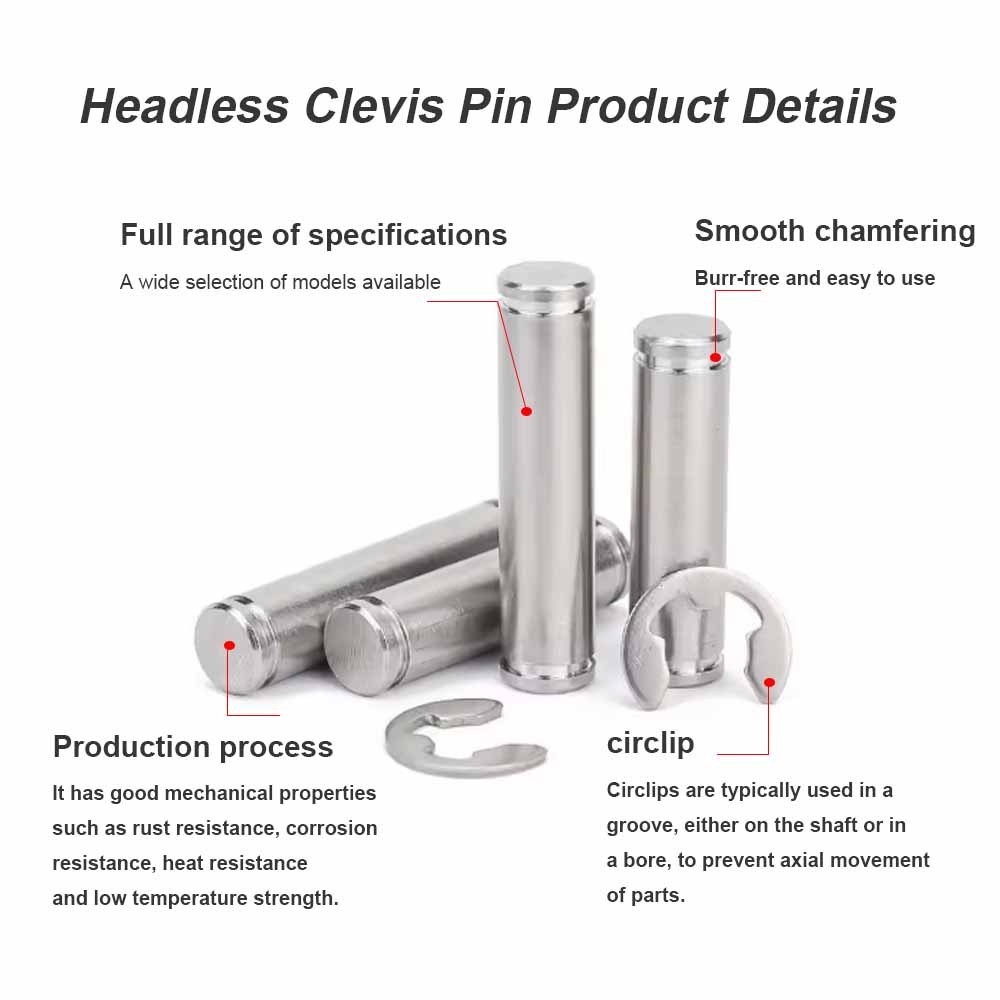

A Headless Clevis Pin with Double Grooved is a specialized type of fastener commonly used in mechanical and structural applications.
It is designed to secure two or more components by passing through aligned holes and holding them together with the help of external retaining components, such as cotter pins, clips, or rings.
The pin does not have a head , and it typically has grooves to help secure these retaining elements.
Typically made from high-strength materials (e.g., steel, stainless steel, or alloy), headless clevis pins are robust and capable of handling high loads and stresses. The grooves help ensure that the pin stays in place even under vibration or movement.
The double grooves offer multiple options for securing the pin in place, providing more versatility and reliability compared to single-groove clevis pins.
They can be used in a variety of applications, including machinery, agricultural equipment, automotive, construction, and more. The design makes them suitable for applications that require reliable fastening with space limitations.
The pin is easy to install by sliding it into the aligned holes of the components. The retaining elements are then inserted into the grooves to lock the pin in place. Removal is equally simple by taking out the retaining elements and sliding the pin out.
Many headless clevis pins are made with corrosion-resistant materials or coatings (such as stainless steel or zinc plating), making them suitable for outdoor or harsh environments.
Ready to upgrade your hitching system? Order your Headless Clevis Pin now and enjoy fast shipping and excellent customer service. Our team is dedicated to providing you with the best in quality and reliability!
One - piece split shaft collars are important fasteners. Made usually of Carbon Steel and Stainless Steel. They have a one - piece design with a split for easy shaft installation. Provide secure grip, are durable, and are used in many mechanical applications.
#Material: Carbon Steel, Stainless Steel(SS), Aluminum(AL)
#Surface Treatment: Black Oxide, Zinc Plated, Slef Colour Oiled
#Custom size avaiable

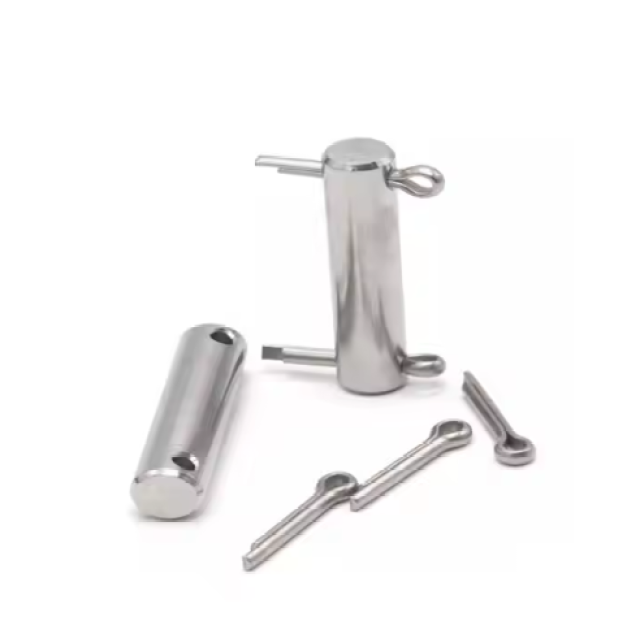

Linkgo Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, a clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. Similar to bolts and rivets, clevis pins are used as quick, secure, and cost-effective fasteners. Available in plain, zinc clear, zinc yellow, and stainless steel. Universal Clevis Pin, Cylinder pin, Adjustable Clevis pin can be reused in a variety of applications in agricultural and other industrial applications.

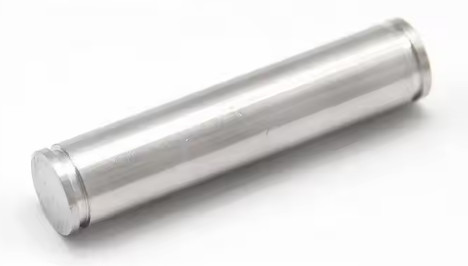

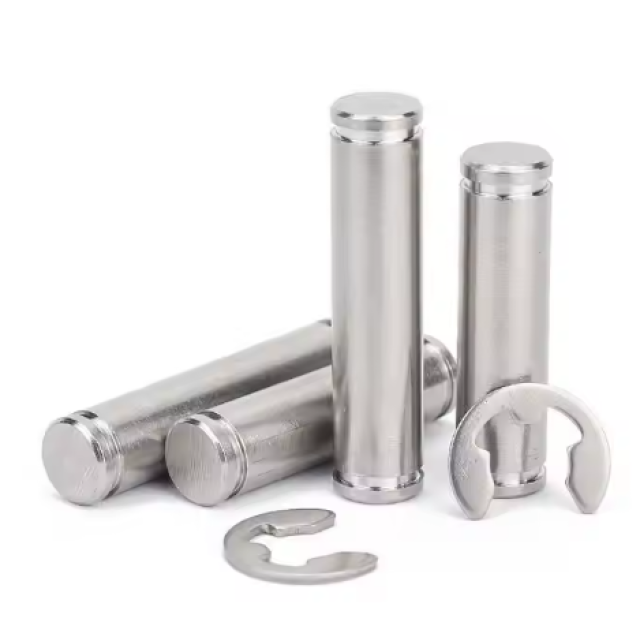

Headless Clevis Pin with Double Grooved is a type of clevis pin that features two grooves around the shaft, typically at both ends, which are designed to accommodate circlips (also known as snap rings or retaining rings) to securely hold the pin in place. This configuration provides extra security compared to a single groove clevis pin and is often used in applications where higher safety or reliability is required.
# Yellow Zinc plated or bright zinc plated.
# Made out of 1040 steel.
Linkgo Adjustable Clevis pins are used as a quick and secure fastener in place of bolts and rivets. Designed with both a flat or domed head on one end and cross-hole at the other, the adjustable clevis pin is inserted through the holes at the pronged ends of a clevis and is kept in place by a cotter pin. Similar to bolts and rivets, clevis pins are used as quick, secure, and cost-effective fasteners. Available in plain, zinc clear, zinc yellow, and stainless steel. Universal Clevis Pin, Cylinder pin, Adjustable Clevis pin can be reused in a variety of applications in agricultural and other industrial applications.
